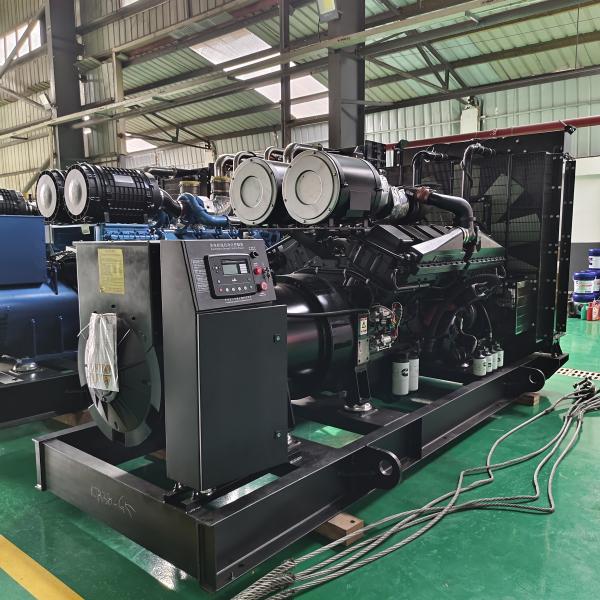

500kw Gas Generator 625kva Asociated Gas Generator Set Cummins
Genset
Natural Gas Generator Set Parameters
| Continue power | 500KW |
| Frequency | 60HZ |
| Rated voltage | 277/480V |
| Phase & Wire | 3P 4W |
| power factor | 0.8 |
| Rated speed | 1800 |
| Cooling mode | Water cooled |
| Damping system | High elastic rubber shock absorber |
| Steady state voltage regulation rate % | ≤±1 |
| Transient voltage regulation rate % | ≤±15 |
| Voltage stabilization time S | ≤3 |
| Voltage fluctuation rate % | ≤±0.5 |
| Steady state current regulation rate % | ≤5 |
| Transient current regulation rate % | ≤±10 |
| Current stabilization time S | ≤3 |
| Current fluctuation rate % | ≤0.5 |
| Genset controller | Smartgen HGM6110N |
| Breaker | DELIXI MCCB |
Gas Engine Parameters
Brand
| CCEC | Continue power | 900KW (The customer's gas source is calibrated as 70% of natural
gas, which is 630KW) |
| Engine Model | K38N-G8 | Gas pressure | 55PSI=379KPA |
| Fuel type | Asociated Gas | Speed governor | Electronic governor |
| Fuel Consumption | 9.2 MJ/kw.h | Oil capacity (L) | 170.3 |
| Rated speed | 1800 | Bore*stroke | 159×159mm |
| Displacement (L) | 38 | Cooling method | Water cooled |
| Compression ratio | 11.5:1 | Starting voltage | DC 24V |
| Engine Characters | Water-cooling, V type 12 cylinder, 4 Stroke | Crankshaft rotation direction | anticlockwise(facing flywheel) |
| Starting method | Electric start | Model of lubricating oil | 15W-40CH and above |
| Intake type | Turbocharged Aftercooled | | |
Alternator Parameters
| Brand | Leroy Somer | Place of Origin | Fuzhou,China |
| Model | TAL-A47-C | Capacity (KW) | 500KW @ 480V |
| Excitation mode | Pure copper self excitation without brush | Frequency(HZ) | 60 |
| Cooling mode | Natural cooling | Voltage regulating system | AVR Automatic voltage regulation |
| Degree of protection | IP23 | Insulation class | H |
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard
of the US Cummins keep the quality
almost the same as the US Cummins.
2. More than 90% of the Engines components and spares are made in
China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all
around the world; all the spares are universal
which make the maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get
technical support and spares right near your
house.
5. Engineers are more familiar with Cummins engines because they
are most widely use in every filed and everywhere
around the world.
Introduction of Guangdong Sunkings Electric Co., Ltd.
Guangdong Sunkings Electric Co., Ltd has more than 20 years
experience in manufacturing and maintenance
of diesel generator sets. We mainly manufacture 20-2750KVA Cummins,
Perkins, Weichai, Yuchai and Shangchai
powered diesel gensets which are all made in China keeps the genset
cost much lower than the US or EU or the
Japan cost, since the design and all materials are same as original
factories, the quality remains almost same as
original factories.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent
through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the
shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers.
