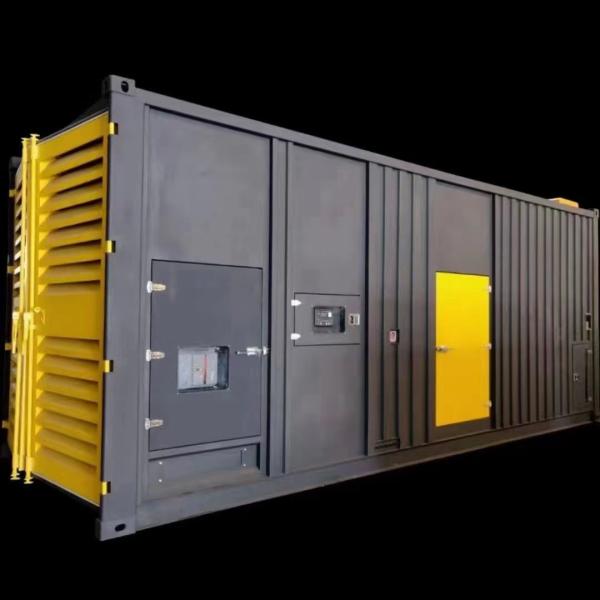

SHX China Manufacturer 2000kva/1600kw Low Emission Silent Open Type Diesel Engine Generator
Standard Parts:
Diesel Generator Technical Parameters |
| Genset Model:SHX-2000 | Rated Power:1800KVA/1440KW |
| Frequency:50HZ | Rated Speed:1500rpm |
| Rated Voltage:400V | Rated Current:2598A |
| Phase:3 phase 4 wire | Start method:DC24V electric start |
| Silent type size(L*W*H) :40FT HQ CONTAINER | Weight:18000KG |
Engine Technical Parameters |
| Engine Brand:CUMMINS | Engine Model:QSK60 |
| Engine Rated Power:1600KW | Number Of Cylinders:12 cylinder V type |
| Bore*Stroke:152*180mm | Compression ratio:14:1 |
| Displacement:60L | Fuel Consumption :215g/Kw*h |
Alternator Technical Parameters |
| Optional Brands:Stamford/Leroy Somer/Mecc Alte/Marathon |
| Voltage adjust range:≥5% | Rated power factor:0.8 |
| Protect Grade:IP23 | Insulation Class:H |
The standard configuration of the generator set is as follows:
Brand new Cummins electric governor diesel engine and Leroy-somer brushless self exciting 100% copper alternator.
Intelligent LED display control panel;
Speed governor & AMF(MCCB)
Electric start and 24v charger;
Standard air filter, oil filter, fuel filter; Cooling water tank;
High-efficient silencer
Exhaust elbow
Steel base-frame against vibration;
Soft pipe for fuel and handle for lube going-out;
Operation& Maintenance manual.
Battery Charger
● Prime Power : Prime power is available for an unlimited number of annual hours in variable load application, in accordance with GB/T2820-97(eqvISO8528); A 10% overload capability is available for a period of 1 hour within a 12-hour period of operation.
● Standby Power : The standby power rating is applicable for supplying emergency power for the duration of a utility power interruption. No overload allowed, utility parallel or negotiated outage operation capability is available at this rating.
Guangdong Sunkings Electric Co., Ltd
We make Diesel Generator Sets /Biogas Generator Sets covering 20KW
to 2400KW (25KVA to 3000KVA), and offer fully power solutions for agricultural and industrial
purpose. We are the appointed OEM partner of Cummins, Perkins,
Volvo and Daewoo.Excellent engines equipped with world-known
alternators such as Stamford, Marathon, Engga and Farada. All our
jobs are to make sure the excellent performance of our generator
sets. We would like to listen what you need for electric power, and offer
you the best solution.
