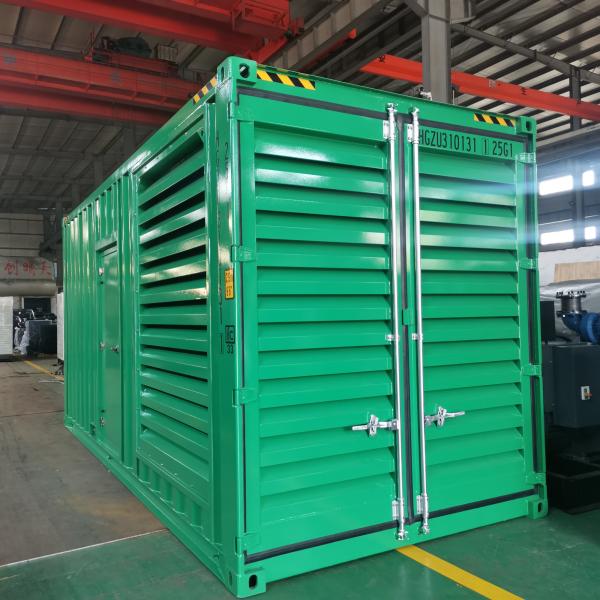

SHX 800kva 640kw 50Hz 3 Phase Container Diesel Generator Hotel
Diesel Electric Genset
Supply Scope of soundproof generator
1.Standard tool kits and complete operation/maintenance/spare parts
manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange
connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
6.Circuit Breaker, Exhaust Silencer
7.Radiator for 50°C ambient temperature and double-deck cooling,
with fan guard and front guard.
8.Anti-vibration pads are fixed between engine/alternator and base
frame, as to ensure the compete genset
running under stabilization.
9.Skid-mounted bottom Fuel tank - 8hrs continuous running for
choice (bigger fuel tank by your demand under
extra cost)
10.External recessed emergency stop button for extra safety
11.The colors & Brands by your requests
12.Optional choice: ATS (automatic transfer switch), battery
charger of mains supply, fuel-water separator, water
heater and oil heater ( depends on using environment),fuel filter,
oil filter, water filter and air filter, Parallel system
for your choice.
Genset Specifications
| Genset model | SHX-880 |
| Genset rated power | 640KW / 800KVA |
| Rated voltage | 400V / 230V (adjustable) |
| Rated current | 1155 Amp |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 6058×2438×2896 |
| Weight (kg) | 12000 |
Engine Specifications
| Diesel Engine |
| Brand | CCEC CUMMINS |
| Model | KTA38-G2B |
| Engine structure | 12 cylinders in vee, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter, fuel filter, oil filter, water filter |
| Displacement(L) | 38 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 15.5: 1 |
| 100% Load fuel consumption (litre/h) | ≤171 |
| Lube oil capacity(L) | 98.6 |
Alternator Specifications
| Alternator |
| Brand | FARRAND |
| Model | FLD634C |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
INSPECTION AND TEST
1 GENERAL
1.1 Each engine shall be tested at manufacturer’s workshop to
certify the engine output and fuel consumption
in accordance with the site operating condition specified by
purchaser on the specification datasheet.
1.2 All relevant information drawings pertinent to the testing and
test procedure shall be transmitted to the purchaser
in advance of the test date notification.
1.3 The purchaser shall call for additional testing if test results
are unsatisfactory or marginal. Any equipment rejected
shall be repaired or replaced to the purchaser’s satisfaction and
tests shall be repeated.
1.4 Any unsatisfactory material, equipment, installation, or
workmanship shall be replaced or repaired to the purchasers
satisfaction at the manufacturer’s cost.
1.5 The engine and generator shall be tested individually in
accordance with relevant standards specified above.
1.6 The completed and individually tested engine and generator
shall be assembled onto the base plate with all auxiliaries,
instruments and controls for a complete test of the generator set.
OEM Service:
Guangdong Sunkings Electric Co., Ltd. Can provide professional OEM
Service for customers.
1. Unique design and manufacture of generator according to
customer’s requirement.
2. Customer logo printing or painting on the genset.
3. Installation and Operation manual neutral or headings can be
design according to customer’s requirement.
4. Full warranty cover to support the customers.
