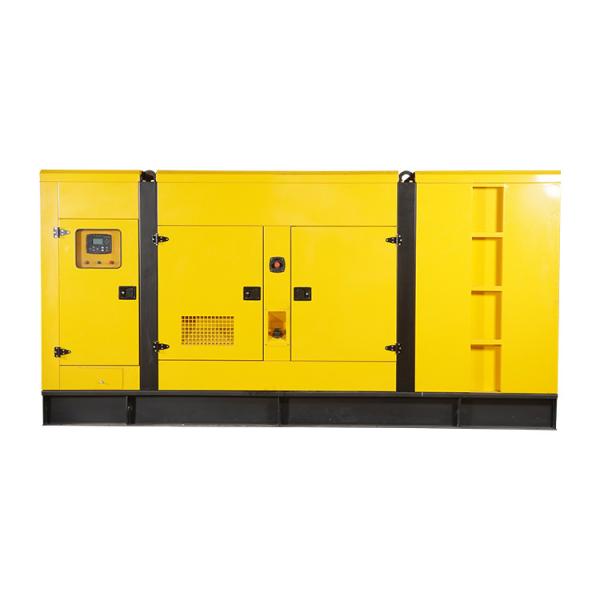

SHX 144kw 180kva Cummins Diesel Generator Set 200kva Standby Silent
Diesel Genset
Full specifications as below:
Genset Specifications
| Genset model | SHX-200 |
| Genset rated power | 144KW / 180KVA |
| Rated voltage | 230V / 400V (adjustable) |
| Rated current | 260 Amp |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 3500×1250×1900 |
| Weight (kg) | 2300 |
Engine Specifications
| Diesel Engine |
| Brand | Cummins |
| Model | 6CTA8.3-G2 |
| Engine structure | 6 cylinders vertical in line, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 8.3 |
| Bore×Stroke(mm) | 114×135 |
| Compression ratio | 17.3:1 |
| 100% Load fuel consumption (litre/h) | ≤40 |
| Lube capacity(L) | 23.8 |
Alternator Specifications
| Alternator |
| Brand | Leroy Somer |
| Model | TAL-A44-L |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
Supply Scope of silent generator
1.Standard tool kits and complete operation/maintenance/spare parts
manuals to Engine/Alternator
2.Brand-new engine, with start motor.
3.Brand new brushless alternator, single bearing, flange
connection, IP21-23, H insulation class, with AVR.
4.Auto control panel, with LCD display.
5.Engine mounted battery-charging alternator.
5.Circuit Breaker, Exhaust Silencer
6.Radiator for 50°C ambient temperature and double-deck cooling,
with fan guard and front guard.
7.Anti-vibration pads are fixed between engine/alternator and base
frame, as to ensure the compete genset
running under stabilization.
8.Skid-mounted bottom Fuel tank - 8hrs continuous running for
choice (bigger fuel tank by your demand under extra cost)
9.External recessed emergency stop button for extra safety
10.The colors & Brands by your requests
11.Optional choice: ATS (automatic transfer switch), battery
charger of mains supply, fuel-water separator, water heater and
oil heater ( depends on using environment),fuel filter, oil filter,
water filter and air filter, Parallel system for your choice.
Advantages:
1.Reliable Performance:
Reliable performance is the major advantage of SHX products, which
is based on the outstanding design
in every aspect and strict QC system.
2.Customer First:
We devote ourselves to develop products to meet customer’s
requirements. Our engineers develop and
design new products for customers.
3. Technical Support and Service:
Our engineer team will solve your technical problems within 48
hours.
4.Strict test process before ex-factory:
Every product will be tested twice before ex-factory, free load and
under load, all products are 100% ex-factory pass rate.
5.Certification:ISO9001:2015, TUV etc.
