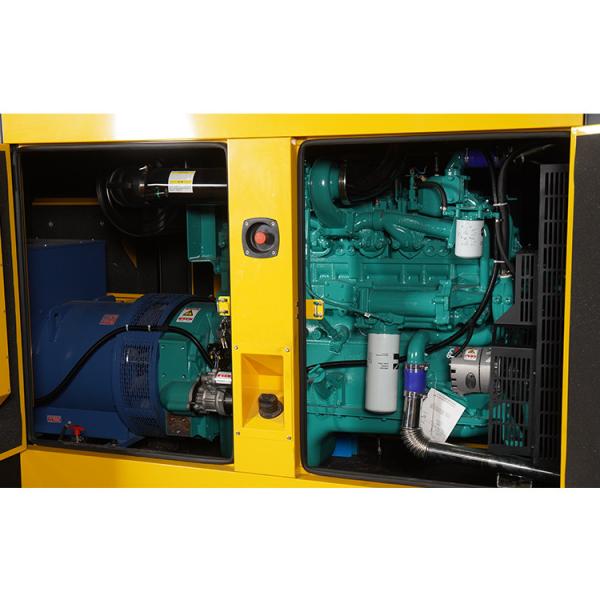

SHX 320kw Electric Diesel Generators Cummins 400kva Silent
Generator Set For Factory Use
Product Advantages
1) Low exhaust gas
2) Independent fuel direct gush-oil system
3) Low fuel consumption
4) Steady performance
5) Good power-weight ratio
6) Small, compact structure, beautiful appearance
7) Easy to facilitate installation, easy to maintenance
Technical specifications of Cummins 400kva silent generator set
| Genset model | SCS440 |
| Genset rated power | 320KW/400KVA |
| Rated voltage | 400/230V (adjustable) |
| Rated current | 576A |
| Frequency | 50Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 4600×16000×2300 |
| Gross weight (kg) | 4000 |
| Diesel Engine |
| Brand | DCEC Cummins |
| Model | 6ZTAA13-G2 |
| Engine type | 6 cylinders in line, 4 stroke, air-to-air after-cooled |
| Aspiration | Turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling system | Water-cooled |
| Fuel system | Electronic controlled injection |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement (L) | 13 |
| Bore×Stroke (mm) | 130×163 |
| Compression ratio | 17: 1 |
| 100% Load fuel consumption (g/kw.h) | ≤192 |
| Lube capacity (L) | 45.42 |
| Alternator |
| Brand | Stamford |
| Model | HCI444F |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
| The components of the genset |
| (1) Diesel engine; (2) Alternator; (3) Water tank & radiator
assembly; (4) Control panel; (5) Base frame. |
Why choose Cummins powered gensets?
1. Cummins engines which are made in China with the same standard
of the US Cummins keep the quality almost the same as the US
Cummins.
2. More than 90% of the Engines components and spares are made in
China which keeps the cost much lower.
3. Cummins engines are universally just as Cummins factories all
around the world; all the spares are universal which make the
maintenance and reparation very simple.
4. Cummins has worldwide after-sales network, to whom you can get
technical support and spares right near your house.
5. Engineers are more familiar with Cummins engines because they
are most widely use in every filed and everywhere around the world.
