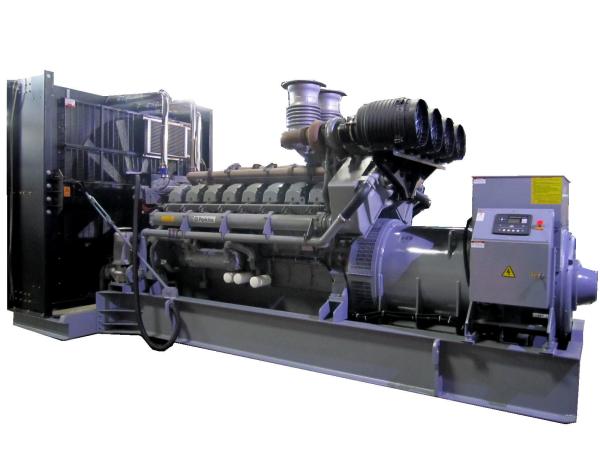

Big power Plant 2MW UK perkins 50hz industrial Emergency Diesel
generator
Engine model | 4016-61TRG3 |
Engine speed (rpm) | 1500 |
| Prime power | Standby power |
Gross engine power (kWb) | 2106 | 2217 |
Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW) | 2002 | 2108 |
Cylinders | 12-cylinder, 60° Vee |
Cycle | 4 stroke |
Induction system | Turbocharged |
Combustion system | Direct injection |
Compression ratio | 13:1 |
Bore * Stroke (mm) | 160 * 190 |
Alternator manufacturer | Leroysomer Electro technique (Fuzhou) Company Ltd. |
Alternator brand | Leroysomer |
Alternator model | LSA50.2M6 |
Control system | AREP |
A.V.R. | Included |
Voltage regulation | ±1.0% |
Insulation system | Class H |
Protection | IP23 |
Rated power factor | 0.8 |
Winding pitch | Two thirds |
Winding leads | 6 |
Frequency (Hz) | 50 |
Voltage (V) | 400 |
Phase | 3 |
Output ratings (prime) | 2250/2000 |
Output ratings (standby) | 2375/2050 |
THF | <2% |
TIF | <50 |
Max. overspeed (Rev/Min) | 2250 |
Bearing | Single |
1.Assembled by UK diesel engine and high quality branded
alternator.
2.Radiator and fan with safety guard, or heat exchanger.
3.Heavy duty steel base frame with great capacity fuel tank for
options.
4.Vibration damping supports between engine/alternator and base
frame.
5.Heavy duty industrial type exhaust silencer with flexible bellow.
6.High capacity sealed lead acid battery with battery cable.
7.Intelligent control panel, Deepsea or Comap brand for options.
8. 50MW small power plant
Guangdong Sunkings Electric Co., Ltd is a factory that professional manufacturing generator from 30kva
to 3000kva. It is coupled by world famous brand engine such as
Cummins, Perkins, Deutz, MTU, Yuchai, Weichai etc, with world
famous brand alternator such as Stamford, Marathon, Leroy Somer,
Mecc Alte etc. Our products are with advantage of lower noise,
lower vibration, easily starting, reliable performance, which can
be widely used in factories, mines, banks, hospitals, ship
building, telecommunications, oil fields, buildings, construction
fields and other fields, or used as the standby power.
