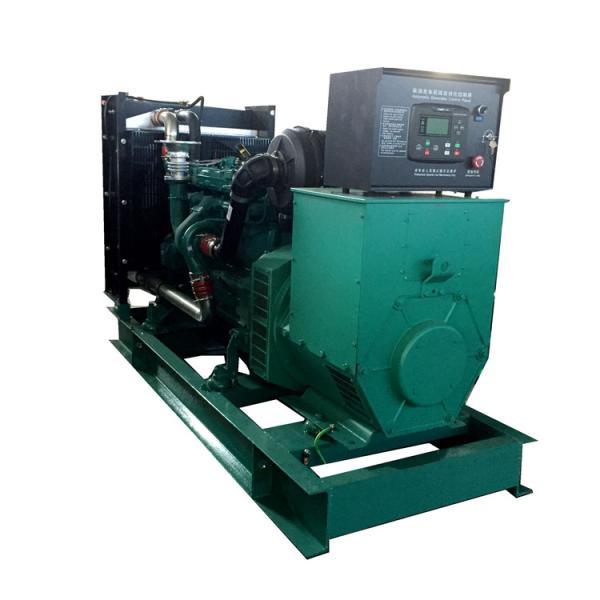

SHX 125kva Backup Diesel Generator 100kw 3 Phase Standby Diesel Generator Set

Product Advantages

1) Low exhaust gas

2) Independent fuel direct gush-oil system

3) Low fuel consumption

4) Steady performance

5) Good power-weight ratio

6) Small, compact structure, beautiful appearance

7) Easy to facilitate installation, easy to maintenance

Manufacturing Standards:

ISO8528; ISO1105; ISO3046; GB/T2820; GB755; BS5000; NEMAMG-22; YD/T502

Electrical Parameters
Wave distortion: <10%
Voltage fluctuation: <0.5%
Voltage / frequency fluctuation: <=0.5%
AVR self-regulated, voltage regulation rate: <=+- 1%
Radio interference restraining accords with stipulation of VDE0875-N and ISO8528

Control Function
Key start / auto start
Monitoring meters: Current; Frequency; Wire Voltage; Genset KVA; Genset KW; Output
Capacity; Output KW.H; Power Factor.
Warning/Shutdown: Alternator Under/Over Volts, Frequency; Under/Over Speed; Low Oil Pressure; High Engine Temp; High/Low Battery Volts; Over Current; Earth Fault Shutdown.

SCOPE OF SUPPLY

1. DIESEL ENGINE

1.1 Engine which includes wet type cylinder, direct injection combustion chamber, exhaust turbocharger, water cooling, electronic governor, etc.

1.2 Fuel system, which includes, fuel pump, strainers or filters, etc.

1.3 Air intake and exhaust system, which includes air filter, exhaust silencer, bellow, all intake and exhaust piping, cablings, instruments, valves and settings, etc.

1.4 Cooling system, which includes radiator with water level alarm and indicator, thermostatic switch, thermostatic heater, engine shaft mounted fan, all interconnecting piping, cablings, instruments, valves and settings, etc.

1.5 Lubricating system includes pumps, oil sumps, oil strainers and filters, all interconnecting piping, instruments, valves and settings, etc.

1.6 Starting system, which includes 2 sets of batteries, a set of AC charger, and interconnecting piping, cablings, instrument, valves and settings, etc.

2. AC SYNCHRONOUS GENERATOR

2.1 Generator, which includes exciter, rectifier, AVR, shaft mounted fan if required.

2.2 All interconnecting piping, cablings, instruments, valves and settings, etc.

3. COUPLINGS AND GUARD

3.1 Coupling

3.2 Coupling Guard

4. CONTROL PANEL

4.1 Local automatic control panel

5. BASEPLATE

5.1 Common base plate

6. DOCUMENTS

6.1 Generator Set Installation Manual

6.2 Generator Set Operation and Maintenance Manual

6.3 Generator Set Control Panel Manual

6.4 Engine Manual and Quality File

6.5 Alternator Manual and Quality File

6.6 Factory Acceptant Test Report

6.7 Relative Drawings and Diagrams

We make Diesel Generator Sets /Biogas Generator Sets covering 20KW to 2400KW (25KVA to 3000KVA), and offer fully power solutions for agricultural and industrial purpose. We are the appointed OEM partner of Cummins, Perkins, Volvo and Daewoo.Excellent engines equipped with world-known alternators such as Stamford, Marathon, Engga and Farada. All our jobs are to make sure the excellent performance of our generator sets. We would like to listen what you need for electric power, and offer you the best solution.
