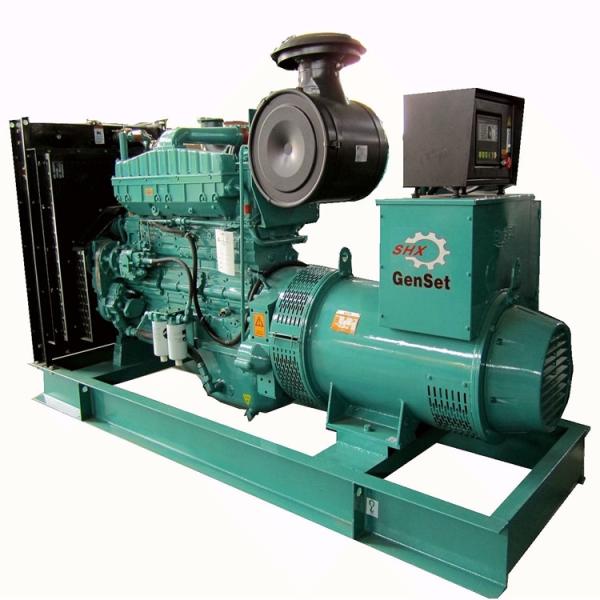

SHX 250kw Backup Diesel Generator 313kva Cummings Generator
Portable Generator Set
Why choose us?
1.Sunkings is the first group of trade assurance suppliers, agree
to abide product quality and delivery obligations.100% payment
refund against delivery time.
2.Alibaba Assessed 4 years Gold Supplier.
3.Inspected by the Inspection Institution of Bureau Veritas
Certification.
4.100% QC inspection Before Shipment.
5.Best Quality & Best Service with Competitive price.
Specification of 250kw diesel generator set
| Genset Model | SCF344 |
| Prime Power | 250KW/313KVA |
| Standby Power | 275KW/344KVA |
| Phase Number | 3 |
| Power Factor | 0.8 |
| Rated Voltage | 230/400V |
| Frequency | 50Hz |
| Rated Current | 450A |
| Genset Structure | Open frame |
| Dimension | 3000×1000×1750mm |
| Net Weight | 2700KG |
| Noise level | |
| Fuel Tank Capacity | |
| Engine Model | CCEC Cummins NTA855-G1B |
| Engine Features | 6-cylinder in line, 4 stroke, water cooled |
| Bore * Stroke | 140mm × 152mm |
| Displacement | 14L |
| 12-hour Power(kw) | 275KW/1500 |
| Fuel Consumption (g/kw.h) | 201 |
| Compression Ratio | 14:1 |
| Governor type | Electric |
| Alternator Model | Farrand / FLDK444D |
| Excitation Mode | brushless self-excited |
| Insulation Class | H |
| Protection Class | IP23 |
| Construction Type | SAE Disc-coupling |
| Controler panel | Deepsea/ ComAp/ Smartgen |
| Smartgen 6110 | intelligent and network techniques is used for automatic control
system of diesel generator. It can carry out functions including
automatic start/stop, data measure and alarming.automatic switching
control functions (AMF), especially suitable for the automation
system composed by Mains and Generator |
General features:
■ Every generator set is subjected to a comprehensive test program
which includes 50% load, 75% load,100% load, 110% load and the
checking and proving of all control and safety shut-down functions;
■ 24V DC start motor;
■ Equipped 24V high performance maintenance-free lead-acid starting
batteries and connecting with cables;
■ Equipped with industrial silencer and flexible exhaust hose;
■ Designed to Comply with ISO8528/GB2820;
■ Powered by Perkins engine, Stamford alternator and DeepSea /
ComAp / SmartGen control panel.
Continuous Generator
These generators operate year-round and are usually located in
areas far away from the power grid or near industrial and mining
enterprises to meet the needs of construction, production and
domestic electricity.
At present, in the area with more developed economy, because the
construction of electric power network is less than the power
demand of users, the commonly used diesel generator set with short
construction cycle is set up to meet the needs of users.
This type of generator has a relatively large capacity, provides
continuous power supply for unsteady loads, has no limit on the
duration of continuous operation, and allows one hour of over-load
power supply for a period of 12 hours.
The overload capacity is 10% of the rated output power of diesel generator set. Because of its long running time and heavy load, the allowable
power relative to the limit power of this unit is set to a lower
point.
