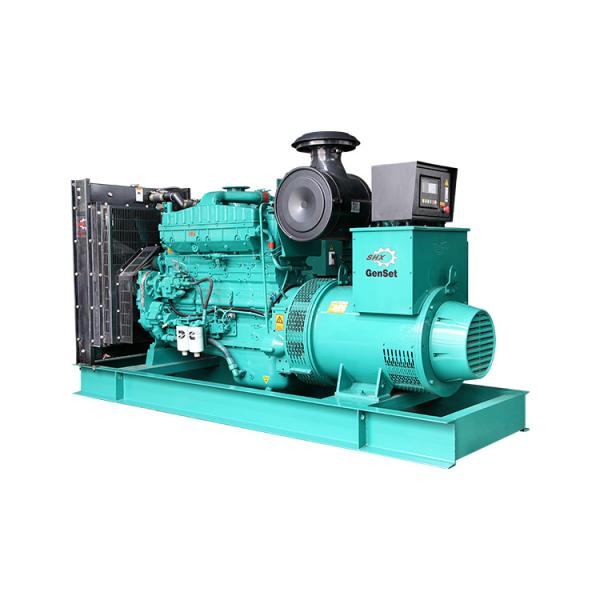

1500rpm Turbo Standby Diesel Generator 600kva Cummins Electric Generator

Ask Lasest Price
Brand Name :	SHX
Model Number :	SHX600
Certification :	CE/ISO9001/Saber/COC/EPA
Price :	usd 1-150000 one set
Payment Terms :	L/C, T/T, Western Union
Supply Ability :	1000sets one year
Delivery Time :	200 working days

Add to Cart

Product Details
Company Profile

1500rpm Turbo Standby Diesel Generator 600kva Cummins Electric Generator

600kva Cummins Electric power Standby Diesel Generator with 100% copper alternator

Genset specification

MODEL	SHX600
Prime Power (50Hz)	600kva
Standby Power (50Hz)	660kva
Engine Data
Manufacturer / Model	Genset with KTAA19G6A
Air Intake System:	Turbo
Fuel System:	A/AD Type fuel pump
Cylinder Arrangement:	6in-line
Displacement:	18.9L
Rated RPM:	1500 rpm
Governor Type:	RSV Mechanical (std) / Electronic (optional)
Exhaust System
Exhaust Gas Flow:	16.8m³/min
Exhaust Temperature:	565°C
Max Back Pressure:	10Kpa
Air Intake System:
Max Intake Restriction:	6.35kPa
Burning Capacity:	6.48m³/min
Air Flow:	158m³/min
Fuel System
100% (Prime Power) load:	128L/H
Oil System
Total Oil Capacity:	16.4L
Oil Consumption:	≤4g/Kw.h
Engine Oil Tank Capacity:	14.3L
Oil Pressure at Rated RPM:	345kPa
Cooling System
Total Coolant Capacity:	27L
Thermostat:	82-95°C
Max Water Temperature:	104°C
Alternator Data
Alternator Model:	Stamford,MECC,Leroy-Somer
Alternator Capacity:	660Kva
Conecting Type:	3phase,4 wires
Power Factor	0.8
Protection Grade:	IP23
Altitude:	≤1000m
Exciter Type:	Brushless, self-exciting
Insulation Class, Temperature Rise:	H/H
Telephone influence factor (TIF):	<50
THF:	<2%
Voltage Regulation, Steady State:	≤±1%
Alternator Efficiencies:	90.30%
Air Cooling Flow:	0.216m³/S

Genset Features

• Compact structure high-strength chassis

• Easy operation and maintenance, Low cost

• Good performance damping system

• Compliance with international electrical safety standards of electrical system

• High-performance maintenance-free batteries with isolation switch

• 50℃ radiator

• Forklift bottom hole design, easy to transport

• Industrial type muffler

• Noise reduction structure,Low overall noise

• Convenient power output interface and ATS Interface

Guangdong Sunkings Electric Co., Ltd is a leading generator factory that designs, manufactures and distributes marine diesel generator, industry diesel generator we can provides diesel generators for different applications such as offshore platform, data center, telecom, oil filed, outdoor projects. power plants, all kinds of ships and all kinds of buildings. Vlais marine diesel generators with International Association of Classification
