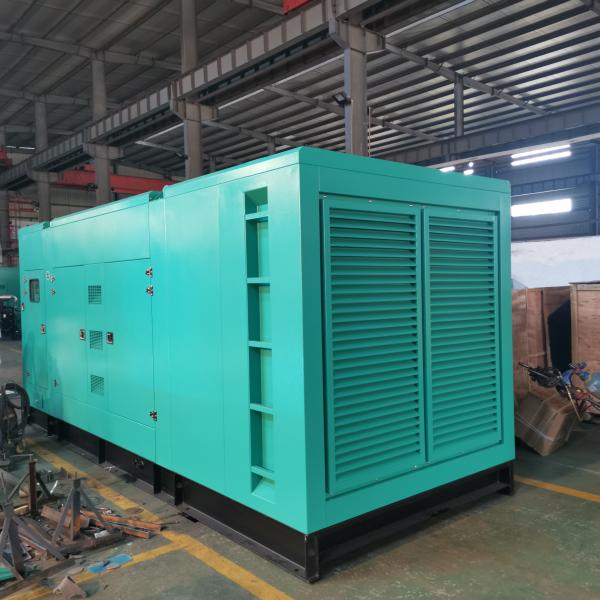

SHX 1000kva Cummins Diesel Generator Set 800kw Soundproof Genset
Features
1) Universal design and manufacture
2) Most widely used around the world
3) With most service terminals
4) Engineers are familiar with Cummins powered gensets
5) You could find spare-parts very easy
Genset Specifications
| Genset model | SCF1100 |
| Genset rated power | 800KW / 1000KVA |
| Rated voltage | 400V / 230V (adjustable) |
| Rated current | 1443 Amp |
| Frequency | 50 Hz |
| Power factor | 0.8 Lagging |
| Connecting type | 3 phase 4 wire |
| Cooling system | Closed cycle water-cooled with fan, water tank |
| Overall dimension (L×W×H) mm | 5600×2200×2560 |
| Weight (kg) | 10000 |
Engine Specifications
| Diesel Engine |
| Brand | CCEC CUMMINS |
| Model | KTA38-G5 |
| Engine structure | 12 cylinders in vee, 4 stroke, turbocharged |
| Rotating speed | 1500 RPM |
| Engine cooling method | Water-cooled |
| Speed governing system | Electronic speed governor |
| Starting method | By 24V batteries |
| Engine filter system | Dry type air filter ,fuel filter, oil filter, water filter |
| Displacement(L) | 38 |
| Bore×Stroke(mm) | 159×159 |
| Compression ratio | 13.9: 1 |
| 100% Load fuel consumption (litre/h) | ≤213.7 |
| Lube oil capacity(L) | 114 |
Alternator Specifications
| Alternator |
| Brand | FARRAND |
| Model | FLD634E |
| Excite type | Brushless self-excited AVR regulation |
| Connecting type | 3 phase 4 pole |
| Steady frequency change | 0.50% |
| No load voltage | ≥95%-105% |
| Steady voltage | ≤±1% |
| Insulation class | Class H |
| Protection grade | IP23 |
SHX Soundproof Generator Set Features:
A new kind of acoustic material is used as pugging, noise reducing
return-flow wind tunnel is used as generator
set's ventilation system, and louver is installed in the window to
prevent rains and other intruders. High efficiency
silencer with double level structure and another silencer between
two levels keep the noise at the lowest level.
The box is modular structure with indicator and maintenance doors
which make installation, operation and maintenance
very convenient. Benefited from the special design, medium low
noise diesel generator set's noise can be as low as
75dB (A) (at LP7m). Fuel tank can be installed on it according to
customer needs.
Sunkings’ Guarantee for SHX Series Generators
1) Guarantee Period: One year or 1000hours whichever comes first.
2) During the guarantee period, the spare-parts will be sent
through your shipping agency in China.
3) Spare-parts can also be sent through FEDEX or DHL, but the
shipping cost will be charged on both sides for 50%.
4) 24 hours service hotline is available for customers
Prime Power (PRP): Prime power is available for an unlimited number of annual hours in
variable load application,
in accordance with GB/T2820-97(EQV ISO8528); a 10% overload
capability is available for a period of 1 hour within
a 12-hour period of operation.
Standby Power Rating (ESP): The standby power rating is applicable for supplying emergency
power for the duration
of a utility power interruption. No overload, utility parallel or
negotiated outage operation capability is available at this rating.
